IFT-01 USER GUIDE · 06

Care, support and safety

Protect the receiver, find support information and use every display within its limits.

About / Support

The About / Support page shows the model, installed software version, website, basic troubleshooting steps and required open-source attribution. Record the Status page and displayed software version before contacting support.

IFT-01 About and Support page
About / Support keeps product identity, version and first troubleshooting steps together.

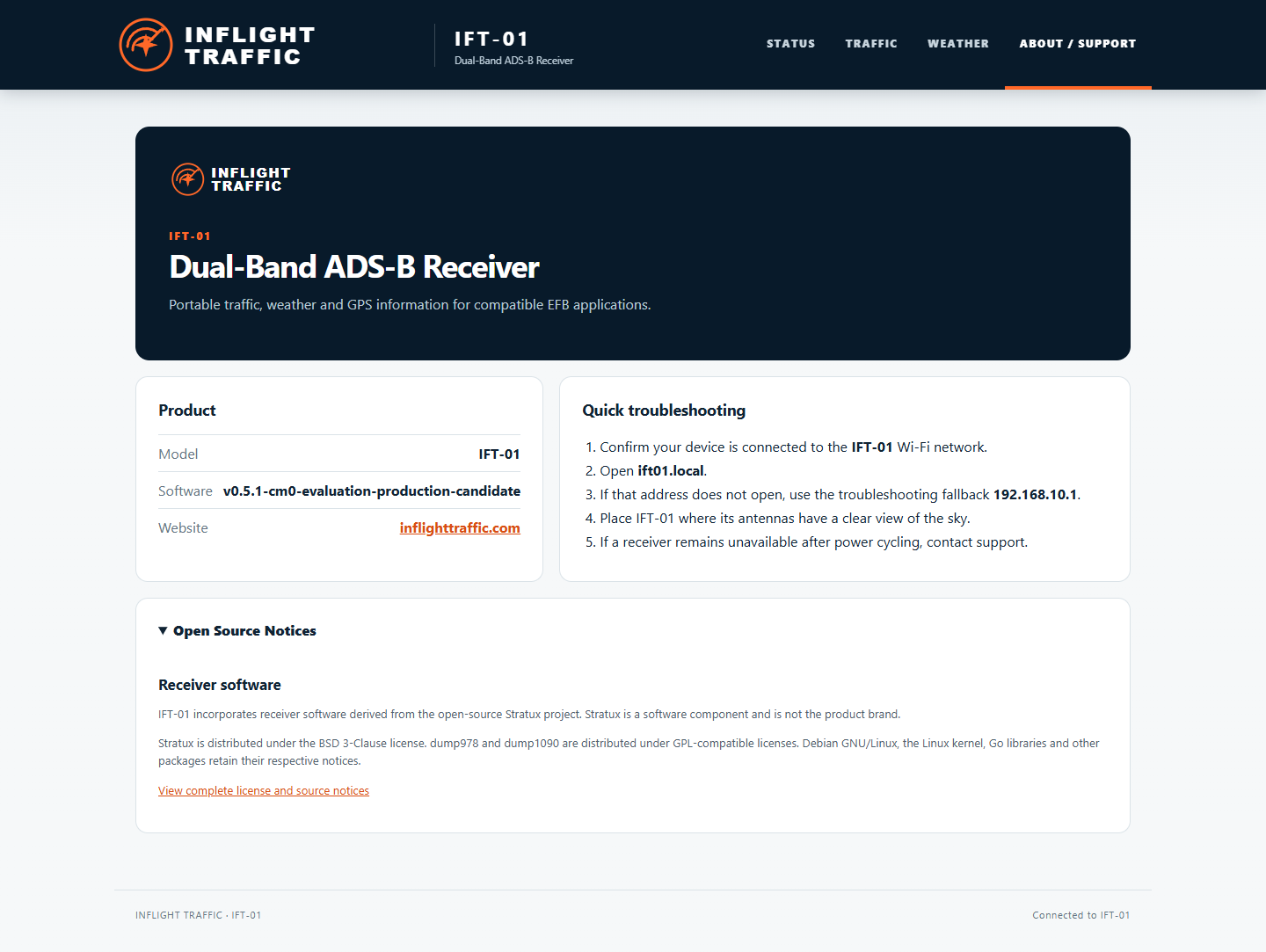

IFT-01 Open Source Notices page
Required open-source notices remain available from the product interface.

IFT-01 uses software derived from the open-source Stratux project and other open-source components. Stratux is a software component, not the IFT-01 product brand.

Placement, heat and care

  • Secure IFT-01 where it cannot interfere with controls, visibility or occupants.
  • Keep the enclosure unobstructed and give the unit a clear view of the sky.
  • Keep the receiver shaded and away from a sun-heated dashboard.
  • Do not cover ventilation openings; allow normal cabin airflow around the unit.
  • Protect the receiver from liquids, crushing and loose metal objects.
  • Inspect the power cable and enclosure before use. Do not use the receiver if it is damaged.
  • Do not open the product, program its receivers or alter its software.
STOP USING THE UNIT

If it repeatedly resets, loses Wi-Fi, displays a persistent DEGRADED or FAULT state, or reports a thermal fault, discontinue use and contact support.

Important safety information

ADS-B traffic can be incomplete, delayed, blocked or unavailable. Some aircraft do not transmit compatible position reports. IFT-01 is not certified collision-avoidance equipment. Continue to see and avoid at all times.

FIS-B products may be delayed or unavailable and do not replace approved preflight or in-flight weather sources. The pilot in command remains responsible for safe operation and for using appropriate approved information.

Screenshots show point-in-time live receiver observations. They are examples of the interface, not guaranteed range, traffic, satellite, temperature or reception specifications.
