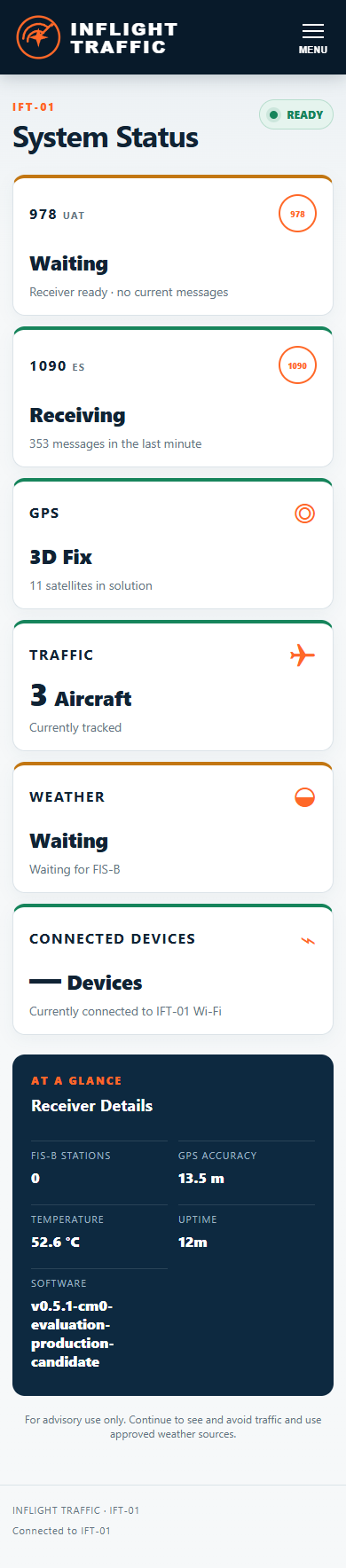

Overall system state
STATEMEANING
STARTINGIFT-01 is still starting. Individual cards may also show Starting.
READYThe required receiver hardware is available and the system is operating.
DEGRADEDUseful operation continues, but a receiver or GPS component is unavailable.
FAULTAn established receiver-service failure requires attention.
Status cards
CARDWHAT IT SHOWS
978 UATReceiving when current 978 MHz messages arrive; Waiting when ready but quiet; Unavailable when the receiver is not operating.
1090 ESReceiving when current 1090 MHz messages arrive; Waiting when ready but quiet; Unavailable when the receiver is not operating.
GPS3D Fix, 2D Fix, No Fix or Disconnected.
TrafficThe number of aircraft tracked from recent reports.
WeatherReceiving only when actual FIS-B data is available; otherwise Waiting.
Connected DevicesThe available IFT-01 Wi-Fi client count. A dash means the count is unavailable, not zero.
The Receiver Details strip shows secondary information such as FIS-B station count, GPS accuracy, temperature, uptime and software version.
